General Diagnostics for Models/Fits by Simple Residual Analysis

Three visual diagnostic tools (based on the {ggplot2} and the {qqplotr} packages) and one metric (standard deviation of residuals) are applied to evaluate the accuracy and appropriateness as well as to compare different models/fits. 1. The first plot represents the Residuals vs Fitted/Simulated Values relation. For a decent model/fit, it will exhibit randomly scattered values around 0 and displays a similar variance over all predicted/fitted values. 2. Sample Quantiles vs Theoretical Quantiles (Q-Q plot) shows, whether the "appearence" of residuals can be described by the normal probability distribution. 3. The latter is combined with a more detailed information about the distribution of residuals by the histogram (geom_histogram) as well as by the probability density (geom_densityincluding the residuals mean value, and median which in ideal case equal to 0).

Usage

plot_eval_RA_forFit(
  data.fit,
  residuals = NULL,
  fitted = NULL,
  resid.method.smooth = "loess",
  resid.xlab = NULL,
  se = TRUE,
  k,
  level.cnfd = 0.95
)

Arguments

data.fit: Data frame object, usually containing variables/columns like experiment, fit(ted)/predicted as well as residuals/errors. If the latter is missing (see the argument residuals below) one can easily create/calculate the variable/column as a difference between the experimental and fitted/predicted values.
residuals: Character string, pointing to variable/column header with residuals/errors, depending on the data.fit argument (usually residuals = "Residuals" or residuals = "errors"). Default: residuals = NULL.
fitted: Character string, pointing to variable/column header with (model) fitted/predicted values, depending on the data.fit argument (usually fitted = "fit(ted)", fitted = "predicted" or fitted = "theory"). Default: fitted = NULL.
resid.method.smooth: Character string, corresponding to smoothing method (function) to follow the trends of residual plot (Residuals vs Fitted/Predicted values). Default: resid.method.smooth = "loess" ("local regression" or "locally estimated scatter plot smoothing"). Additional methods like "lm" (linear method/model) or "glm" can be applied as well. For details and if resid.method = NULL (related to automatic method selection, based on number of points), please consult the geom_smooth for documentation.
resid.xlab: Character string, pointing to $x$-axis label for residual plot (Residuals vs Fitted/Predicted values). Default: resid.xlab = NULL, actually corresponding to "Fitted or Simulated Values". Customized labels like "Kinetic Model Fit (qvar)" or "Quantity (unit)" can be applied as well.
se: Logical ("standard error", default: se = TRUE), whether to display the confidence interval (CI) around the smooth (inherited from the geom_smooth). The CI level is controlled by the level.cnfd argument.
k: Numeric value identical to number of parameters used for the model/fit (see e.g. Examples in the eval_kinR_EPR_modelFit where k = 2).
level.cnfd: Numeric value, identical with the level of applied confidence interval (see also the se argument). Default: level.cnfd = 0.95.

Value

A List, consisting of the following elements is returned:

df: Original data.fit data frame object, if additional processing/analysis is required (see the Details or to perform Residuals vs Observation Order to verify the assumption that the residuals are independent from one another).

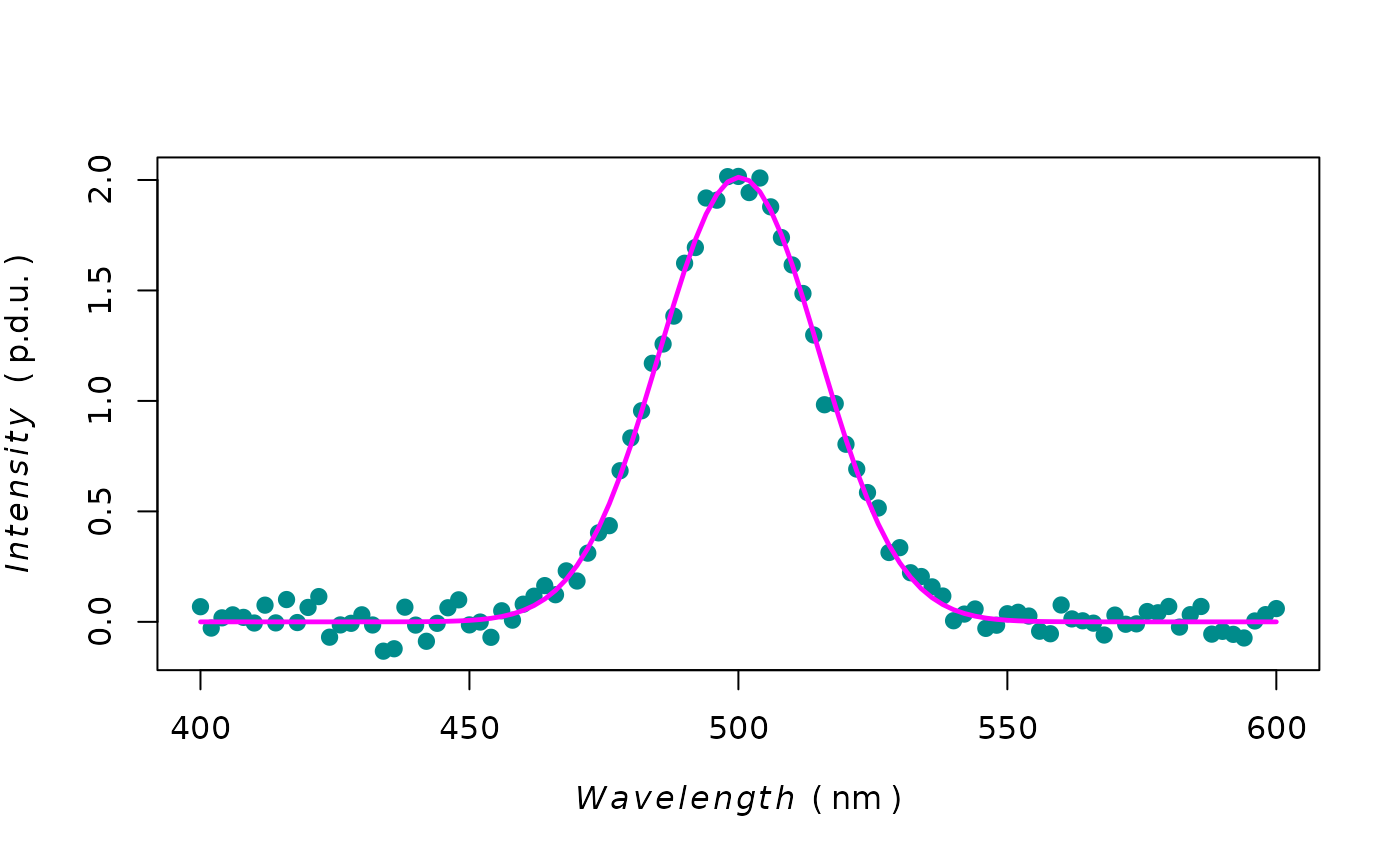

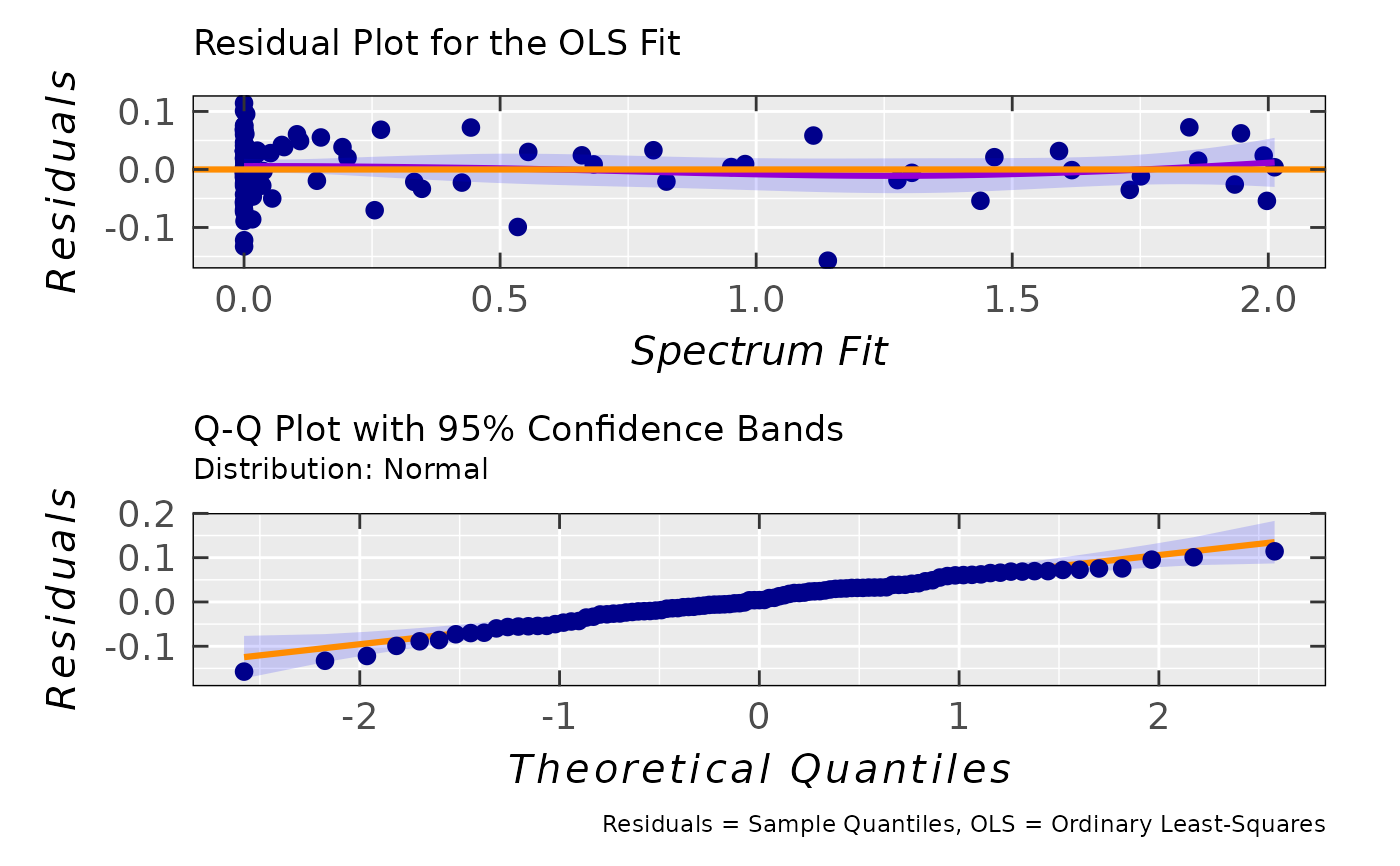

plot.rqq: Ggplot2 object related to visual residual analysis), with two main plots: Residuals vs Predicted/Fitted Values from the model/fit or simulation, and the Q-Q plot (Sample Quantiles vs Theoretical Quantiles, where the theoretical ones correspond to normal distribution).
plot.histDens: Ggplot2 object, showing the histogram and the scaled probability density function for residuals. The corresponding residuals mean value and the median are identified by vertical lines.
sd: Standard deviation of residuals (or residual standard error (RSE)) for the model/fit defined as: $$\sqrt{\sum_i (y_i - y_{i,\text{fit/model}})^2\,/\,(N - k - 1)}$$ where $N$ is the number of observations/points (see the data.fit argument) and $k$ is the number of optimized parameters (see the argument k). Therefore, the smaller the sd, the better the fit, when comparing different models/fits.

Details

Analysis of residuals is a powerful statistical technique to check whether the model/fit has adequately captured the information in the data (please, also refer to the eval_ABIC_forFit). The $i$-th residual/error (in the series) is defined as the difference between the $i$-th observed response value ($y_i$) and that of the predicted/fitted by the model ($\hat{y}_i$ or $y_{\text{fit/model}}$): $$e_i = y_i - \hat{y}_i = y_i - y_{\text{fit/model}}$$ One might think of residuals as "leftovers", i.e. these are the issues/items which are unexplained, after the model/fit has been applied. The residual analysis therefore helps us to to determine whether our model/fit missed an important pattern or not at all (see Chugani (2025) in the References). Residuals are also used in least square fitting/optimization procedures where the sum of their squares is to be minimized throughout the iterations (see e.g. eval_sim_EPR_isoFit or eval_kinR_EPR_modelFit).

In addition to the original "raw" residuals defined above, one may come across other types, like "Pearson" (or "scaled"), "standardized" or "studentized". The latter two are helpful to identify outliers, which are data points that are significantly different from the rest of the data (though, they can be also identified by the Q-Q plot and histogram-probability density). For such reason the "raw" residuals ($e_i$) are divided by their standard deviation ($sd$ see the Value below), including the the effect of leverage. Thus, the formula for standardized residual reads: $r_i = e_i\,/\,(sd\,\sqrt{1 - h_{ii}})$, where the $h_{ii}$ stands for the diagonal element of the "leverage" $\hat{H}$ matrix (see e.g. last three References). The simple explanation of the leverage phenomenon is following (see e.g. Speegle D, Clair B (2021) or The Pennsylvania State University (2018) in the References). The fit or the regression line goes through the center of mass of the (experimental) data ($x$,$y$). Lets assume two points $A$ and $B$, where the $A$ $x$-coordinate is close to the mean value of predictors ($mean(x)$) and the $B$ possesses an extreme $x$ (far from the mean value). Therefore, changing the $A\,(y)$ will induce a small effect (low leverage) on the fit/regression line, whereas the $B\,(y)$ change will dramatically influence the fit (high leverage). Both standardized and studentized residuals can be automatically calculated for linear models like lm and glm, using the stats::rstandard and stats::rstudent. A very detailed analysis for linear models is provided by the {ggResidpanel} package. Additionally, a series of diagnostic plots can be also created in the base R, just by plot(var), where the var represents the variable/object of the linear model. On the other hand, all these diagnostics are not available for non-linear models like nls. Accordingly, such type of calculations can be provided by other packages (see e.g. {nlstools}) or must be performed "manually", evaluating the numerical approximation of the gradient (please, refer to the jacobian) as reported elsewhere (see Nguyen M (2020) in the References). Consequently, the calculations of standardized and studentized residuals are not involved in this general plot_eval_RA_forFit function. Nevertheless, users are advised to apply above-described options to obtain the desired residuals or diagnostic plots for a specific model/fit (also refer to the Value/df).

Considerations to support or exclude model/fit based on the residual plot. If the residuals exhibit no clear pattern, like they are randomly scattered around the 0 with no systematic increase or decrease in variance, we may trust our fit with the optimized parameters. Such pattern is homoscedastic. However, if one recognizes curved ((inverted-)U shape, see e.g. Examples in the eval_kinR_EPR_modelFit), wave or systematic increase (so called "fanning") or decrease ("funelling"), the model/fit is untrustworthy and one would probably search for a different (better) one. In particular, the curved pattern in the residual plot may indicate that a model does a poor job of fitting and likely, we need additional parameter(s) to describe our data properly. In the case if residuals suffer from unequal variance at different levels of the fitted values, the residuals are referred to as heteroscedastic.

Considerations to support or exclude model/fit based on the Q-Q plot, histogram and probability density. If the residuals are assumed to be normally distributed, one can use a normal Q-Q (Quantile-Quantile) plot to check this assumption or its violation. Quantiles are often referred to as "percentiles". These are actually the data points below which a certain portion of the data fall or in other words, they divide the distribution into equal portions. For instance, for a 0.5 quantile (or the 2nd quartile), half of the data lie below this point and half of them above. This quantile is also referred to as median. Similarly, the 0.25 quantile (or the 1st quartile) would mean, that $25\,\%$ of the data fall below this point. The Q-Q plot is actually presenting the quantiles from our sample related to the theoretical ones calculated for the normal distribution. If the points follow the diagonal line (or are not far from this line), we may assume a normal distribution. Additionally, this assumption can be also supported either by the Shapiro-Wilk (shapiro.test) or by the Kolmogorov-Smirnov (ks.test) tests in the base R. Deviations from the diagonal line are also nicely reflected in the histogram and probability density function/graph (PDF, providing the chances that the value of a random continuous variable will occur within a specific range of values). For the normal symmetric distribution it is represented by the bell-shaped curve with the maximum at the mean (for residuals $= 0$, median = mean). Thus, the PDF basically corresponds to histogram with "extremely" high number of bins, having "extremely" small widths. A Q-Q plot may exhibit several basic deviations. It can display a U-shaped pattern, which actually mirrors the situation with the right skewed (or positively skewed, mean > median) PDF. Therefore, we find the extreme values far from the peak on the high end more frequently than on the lower one (see e.g. Example in eval_kinR_Eyring_GHS). Contrary, if the Q-Q plot shows "hill" shape, the opposite situation is observed and the extreme values (outliers) far from the peak on the low end appear more frequently than on the higher one (PDF is left skewed, mean < median). The Q-Q plot with so-called light tails, displays extreme values above and below residual minima and maxima, respectively. This pattern is relatively harmless and one can proceed with methods that assume normality. However, the heavy-tailed Q-Q plot with extreme residuals below and above minima and maxima of the diagonal line, respectively, is somewhat problematic for normal distributions of residuals with outliers on both sides. On the other hand, such kind of normality violation can be successfully described by Student's t-distribution with lower degrees of freedom (see e.g. Examples in the eval_sim_EPR_isoFit as well as eval_ABIC_forFit). Nevertheless, if the residuals, in the latter case, do not exhibit heteroscedasticity, such model/fit is not necessarily untrustworthy. In a very extreme case the heavy-tailed Q-Q plot may be transformed into situation where only a couple of points around the "middle" quantile can be found on the diagonal line and the remaining points are represented by the noticeable S-curve. This is reflected as bimodal behavior in the PDF and it might be the sign of value clustering.

All the above-mentioned violations of the residuals (normal) distribution can disfavor our considered model/fit. However, one has to perform different diagnostic methods and tests to analyze the residuals in order to compare several models/fits and select the "best" one. Even in such case, this should be a compromise between the fit accuracy (fitting the data as well as possible, including the physico-chemical reality of the system) and the parsimony (using a simple and replicable model/fit, Kabacoff RI (2022) in the References).

References

Kabacoff RI (2022). R in Action, 3rd edition, Manning Publications Co., ISBN 978-1-617-29605-5, https://www.manning.com/books/r-in-action-third-edition.

Svetunkov I (2022). Statistics for Business Analytics, Version 2025, https://openforecast.org/sba/.

Hyndman RJ, Athanasopoulos G (2021). Forecasting: Principles and Practise, 3rd edition, O Texts, ISBN 978-0-987-50713-6, https://otexts.com/fpp3/.

Chugani V (2025). "The Concise Guide to Residual Analysis", https://www.statology.org/concise-guide-residual-analysis/.

Boehmke B, Greenwell B (2020). Hand on Machine Learning with R, 1st edition, Chapman and Hall/CRC, ISBN 978-1-138-49568-5, https://bradleyboehmke.github.io/HOML/.

Kuhn M, Silge J (2023). Tidy Modelling with R, 1st edition (Version 1.0.0), O'Reilly Media, ISBN 978-1-492-09648-1, https://www.tmwr.org/.

Belzile L (2019). "lineaRmodels", https://lbelzile.github.io/lineaRmodels/

James G, Witten D, Hastie T, Tibshirani R (2021). An Introduction to Statistical Learning: with Applications in R, 2nd edition, Springer, ISBN 978-1-071-61417-4, https://www.statlearning.com/.

Speegle D, Clair B (2021). Probability, Statistics and Data: A Fresh Approach Using R, 1st edition (Version 2024), Chapman and Hall/CRC, ISBN 978-0-367-43667-4, https://probstatsdata.com/.

The Pennsylvania State University (2018). "STAT 462 Applied Regression Analysis, Lesson 9: Influential Points", https://online.stat.psu.edu/stat462/node/87/.

Nguyen M (2020). "A Guide on Data Analysis", https://bookdown.org/mike/data_analysis/.

Gray JB, Woodal WH (1994). "The Maximum Size of Standardized and Internally Studentized Residuals in Regression Analysis", Am. Stat., 48(2), 111-113, https://www.jstor.org/stable/2684258

Frost J (2025). "Statistics by Jim: Making Statistics Intuitive", https://statisticsbyjim.com/.

Examples

if (FALSE) { # \dontrun{
## application example for an EPR simulation fit
list.test <-
  plot_eval_RA_forFit(
    data.fit = data.sim.expr,
    residuals = "Residuals",
    fitted = "Simulation",
    resid.xlab = "Simulation",
    k = length(optim.params.init),
    level.cnfd = 0.99999999
 )
#
## residual and the normal Q-Q plot
list.test$plot.rqq
#
## histogram and probability density
list.test$plot.histDens
#
## standard deviation of residuals
list.test$sd
#
## from the data, quickly create the residuals vs
## observation order plot (assuming, there
## is no index column in the data frame)
dataframe <- list.test$df
dataframe[["index"]] <- 1:nrow(dataframe)

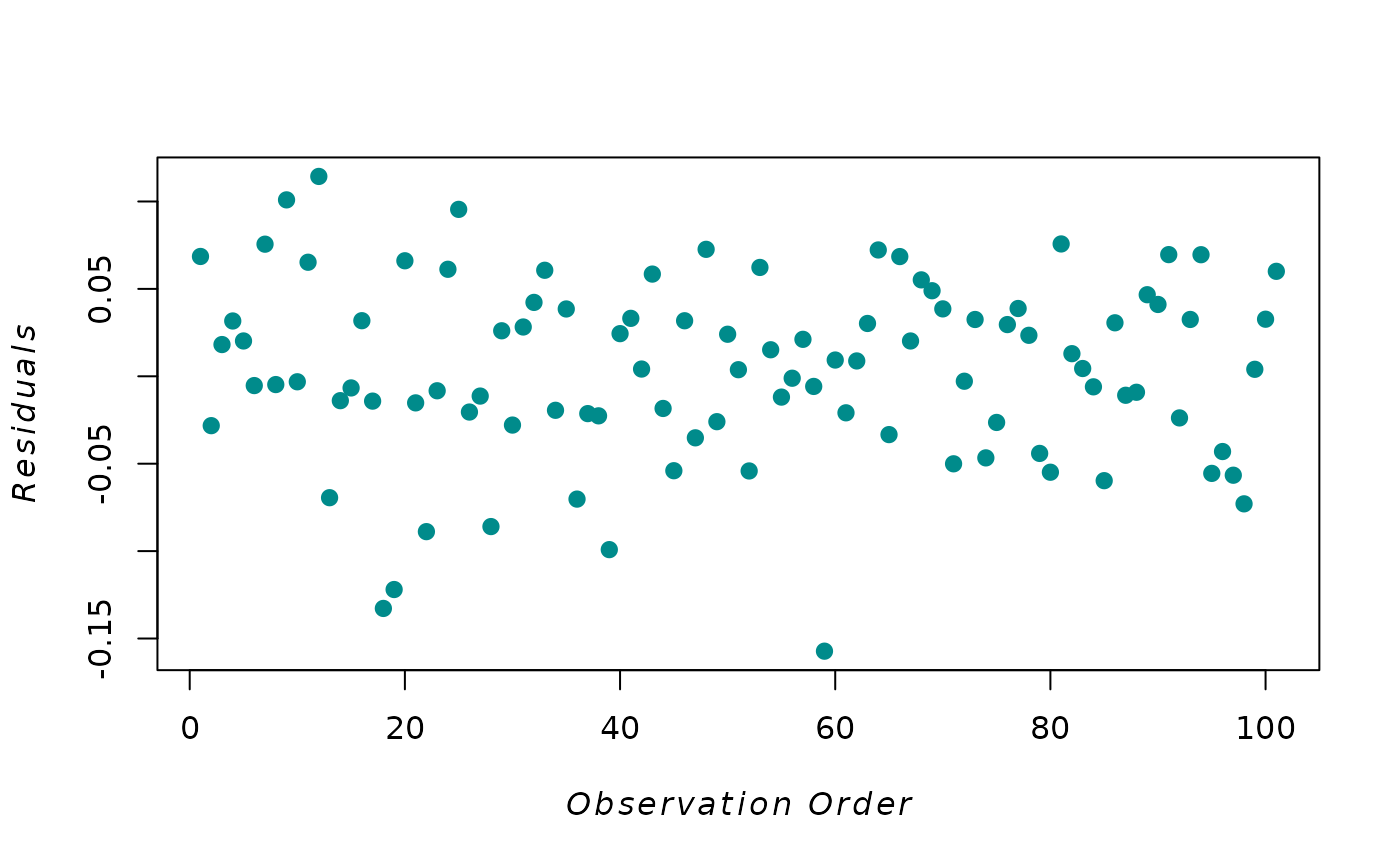

plot(
